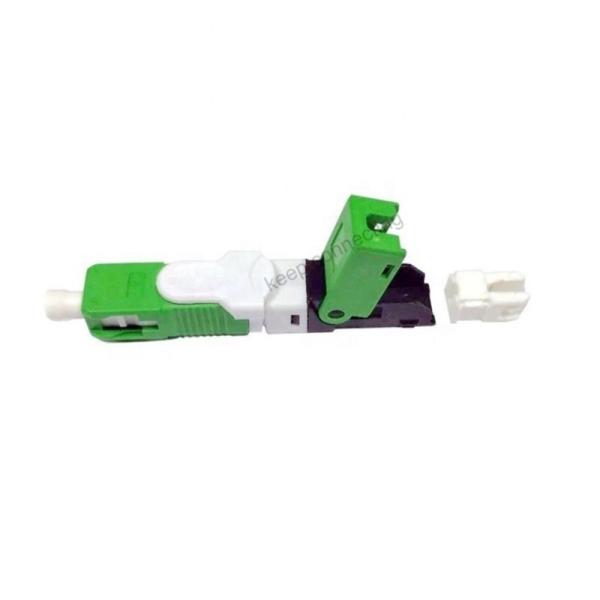

FTTH MT-1041-L SC A.PC Fiber Expansion Fast Connector with Optical Single-Mode Module

Model Number : SC fast connector

Type : Fast Connector

Place of Origin : Zhejiang, China

Brand Name : Fibconet

Use : Datasheet central

Warranty Time : 2 YEARS

Network : None

Connector Type : SC APC

Grinding end-face : APC

Insertion Loss (dB) : 100% <0.3

Return Loss (dB) : Upc≥50dB ; APC ≥ 55dB

Temperature : -50 ~ +85

keywords1 : Fast Connector

keywords2 : SC Fast Connector

keywords3 : UPC Fast Connector

keywords4 : Optical Fast Connector

keywords5 : Fiber Optical Fast Connector

Packaging Details : 10PCS/ BLISTER BOX

Supply Ability : 50000 Kilometer/Kilometers per Month

MOQ : 5000 boxes

Price : $0.21/boxes 5000-19999 boxes

Contact Now

Product Overview

Fast connector is a good solution to field wiring and fiber-to-the home engineering connector. Assembly without glue, grinding and electrical tools, is widely used in construction section, the place need to quickly connect, to provide a fast and stable connector for the operation. It adopts the latest fiber formed technology. All the optical and mechanical index meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional splice opinion, offer the powerfull support for FTTx.
FTTH MT-1041-L SC A.PC Fiber Expansion Fast Connector with Optical Single-Mode Module
Features:
1,Compatible with both 3mm drop cable and 3x2mm flat cable
2,Fast and easy installation (within the 90s)
3,Adopted fiber pre-installed structure.
4,Low insertion loss. High return loss.
5,Pressing position use newly special structure design, without infusion, grind and waste material.
6,Use embedded fiber type structure, ensuring the high installation quality, success rate, and quick installation.



Application:
--Premise environments ;
--Connections at the desk for LAN environments;
--Patch panels;
--Direct equipment termination;
--Fiber to the Subscriber (FTTx) applications;
--Repair/replacement requirements ;
--Equipment test leads.

FTTH MT-1041-L SC A.PC Fiber Expansion Fast Connector with Optical Single-Mode Module
FTTH MT-1041-L SC A.PC Fiber Expansion Fast Connector with Optical Single-Mode Module
Parameters
Specifications
Connector Type
SC/LC/FC/ST
Dimension
50mm
Cable Type
2.0*3.0mm
Fiber Mode
SM/MM
Grinding end-face
UPC/APC
Insertion Loss
UPC
APC

Return Loss
≤0.5dB
≤0.5dB

UPC
APC

≥45dB
≥50dB
Tension Test
≥100N
Operating Temperature
-40ºC~+75ºC
FTTH MT-1041-L SC A.PC Fiber Expansion Fast Connector with Optical Single-Mode Module
FTTH MT-1041-L SC A.PC Fiber Expansion Fast Connector with Optical Single-Mode Module
FTTH MT-1041-L SC A.PC Fiber Expansion Fast Connector with Optical Single-Mode Module
FTTH MT-1041-L SC A.PC Fiber Expansion Fast Connector with Optical Single-Mode Module
1. Are you a manufacturer or trade company?
We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?
Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?
Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?
After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment(deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight costs!

5. What is the quality of your product?
All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?
Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days). Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?
1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?
Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?
1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you Features!
